Horizon Cloud on Azure – introduction and deployment automation script

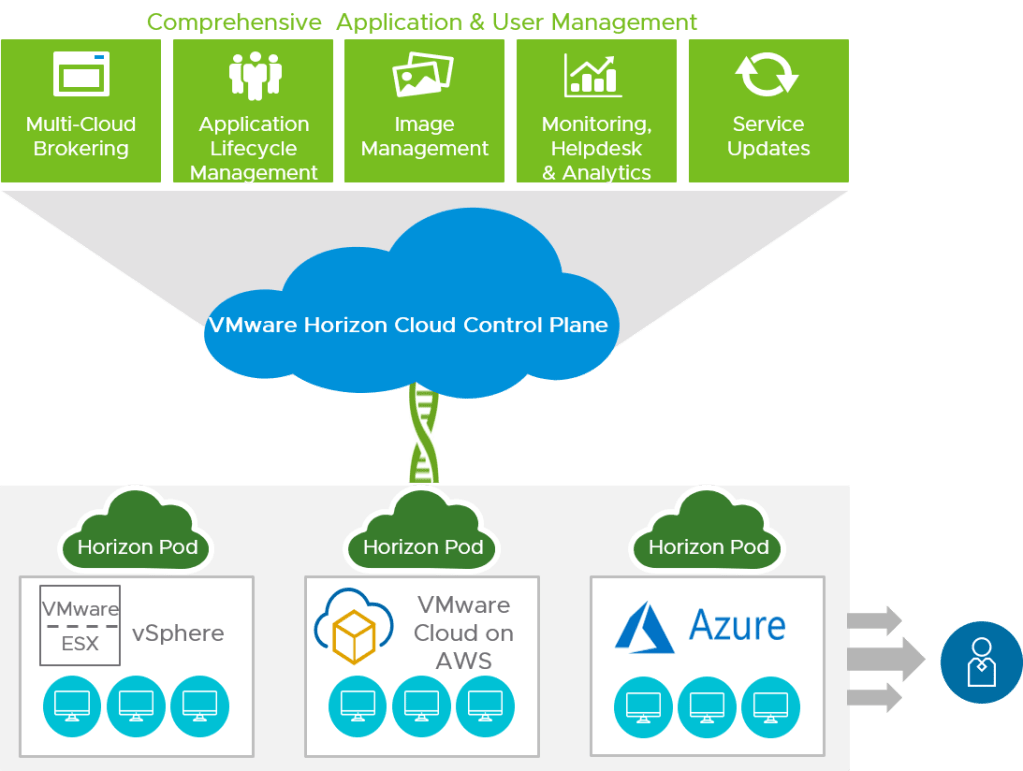

Horizon Cloud is a SaaS based service that allows customers to implement a true hybrid and multi-cloud VDI solution. It can use various resources for desktops and apps capacity – on premise Horizon 7 infrastructure based on vSphere, physical PCs and other unmanaged machines, VMware Cloud on AWS, managed Horizon on IBM Cloud, other VMware Cloud Provider solutions and of course Microsoft Azure. The latter is ramping up recently due to several reasons, notably support for Windows Virtual Desktop.

Wide range of educational resources were developed during recent weeks to help customers and partners jump start their Horizon Cloud PODs on Azure. This post is to summarise them and to add my 5 cents around Powershell automation of the process.

Starting with official curriculum, please find below the most important resources for developing your technical expertise:

VMTN forums

• Product documentation

• VMware Tech Zone for technical blogs and material related to Horizon Cloud on Microsoft Azure

Quick Start Tutorial – Walks you through setting up Horizon Cloud on Microsoft Azure to get you up and running as fast as possible

Hands-On Labs – The fastest way to get a feel for how Horizon Cloud on Microsoft Azure works before you try it in your own environment

Mastering Horizon Cloud on Microsoft Azure – This Activity Path will teach you everything you need to know to be successful with Horizon Cloud on Microsoft Azure.

Horizon Virtual Desktop Optimization Guide – Optimizing your image is as critical as quality networking and storage, though it’s often overlooked. Start your proof of concept or pilot the right way by following our optimization guide and you’ll immediately see the benefits in user experience, density, and cost savings

If you’re new to Azure and setting it up for the first time, then use Shane Fowler’s (my colleague SE @ VMware from Asutralia) video that will walk you through the process.

Further, if you’re already skilled in Azure, or you’re a partner or SE that delivers many Pilots and Proof Of Concepts then feel free to use my PowerShell script developed to automate all the steps on the Azure side before deploying a Horizon POD. This should help you save an hour or two during each of such initiatives.

 #SCRIPT CREATED TO REFLECT STEPS FROM THIS GUIDE: https://techzone.vmware.com/quick-start-tutorial-vmware-horizon-cloud-service-microsoft-azure
#FOR MANUAL STEPS REFERENCE USE SHANE FOWLER VIDEO: https://www.youtube.com/watch?v=qIWum9JtLHk&t=2019s
#IN SCRIPT WORKING DIRECTORY A FILE WILL BE CREATED NAMED .\AzureIDs-For-HZCloud.txt THAT CONTAINS NECESSARY IDS TO CONFIGURE AZURE CAPACITY IN HORIZON CLOUD
#STILL YOU NEED TO MANUALLY INCREASE QUOTA LIMITS FOR YOUR SUBSCRIPTION IN AZURE PORTAL - THERE IS NO PROGRAMATIC WAY TO DO IT

#SCRIPT REQUIRES INSTALLED AND IMPORTED MODULES AZ, AZUREAD, AZURERM - LOGIN TO EACH MODULE WITH YOUR ADMIN ACCOUNT
#IGNORE WARNING
#TESTED ON POWERSHELL 5.1 ON WINDOWS 10 1903

#Variables descriptions to be created. CHANGE indicated you need to adjust to your environment specifics. Rest can be left with current values.
# Sub1 - display name of your Azure Subcription CHANGE
#RG1 - display name of a Resource Group that will be created for Horizon Cloud resources
#Location1 - Azure region name where resources should be created CHANGE
#VMNetName1 - display name of the network that will be used for Horizon desktops and rdsh hosts
#VMNetName - display name of the network that will be used for infrastructure VMs (UAG, MGMT) abd to which a A2S tunnel will be connected.
#VSubNetName1 name of the subnet /24 used for Horizon desktops
#VSubNetName1 subnet name /24 used for infrastructure UAG MGMT
#GWSubName1 subnet name /24 used for A2S VPN
# *Prefix CIDR network addresses for the above subnets CHANGE
#GWName1 Virtual Network Gateway name to be created
#DNS1 your local AD DNS server address at the DC/LAB CHANGECHANGE
#GWIPName1 name of the public IP object in Azure
#GWIPConfName1 - name of the gateway config
#ConnectionName - A2S VPN Connection Name
#LNGName Local Network Gateway display name in Azure
#LNGPrefix1 and LNGPrefix2 - netowrks in your datacenter/lab
#LNGIP - your VPN Gateway public IP

# Declare your variables

$Sub1           = "Azure Subscription 1"
$RG1            = "HSoA-RG-01"
$Location1      = "West Europe"
$VNetName1      = "HSoA-VNET-01"
$VNetName2      = "HSoA-VNET-Infrastructure"
$VSubNetName1   = "HSoA-Subnet-01"
$VSubNetName2   = "Infrastructure"
$GWSubName1     = "GatewaySubnet"
$VNet1Prefix    = "192.168.100.0/22"
$VNet2Prefix    = "192.168.98.0/23"
$VSubNet1Prefix = "192.168.100.0/24"
$VSubNet2Prefix = "192.168.98.0/24"
$GWName1        = "HSoA-VNetGW-01"
$GWSubPrefix1   = "192.168.99.0/24"

$DNS1           = "192.168.1.13"

$GWIPName1     = "HSoA-VNetGW-01-IP"
$GWIPconfName1 = "gwipconf1"
$ConnectionName  = "Site2Site-VPN-VDEMO-Ostrobramska"
$LNGName       = "Site2SiteVPN-LocalNetGateway"
$LNGPrefix1   = "192.168.1.0/24"
$LNGPrefix2   = "192.168.252.0/24"
$LNGIP         = "83.144.96.2"

# Connect to your subscription and create a new resource group

$azsubscription = Select-AzSubscription -SubscriptionName $Sub1
New-AzResourceGroup -Name $RG1 -Location $Location1

# Create virtual networks / spoke vnet for Horizon Service

$VSubNet1 = New-AzVirtualNetworkSubnetConfig -Name $VSubNetName1 -AddressPrefix $VSubNet1Prefix
$vnetHSoA = New-AzVirtualNetwork -Name $VNetName1 -ResourceGroupName $RG1 -Location $Location1 -AddressPrefix $VNet1Prefix -Subnet $VSubNet1 -DnsServer $DNS1

# Create virtual networks / hub vnet for A2S VPN

$VSubNet2 = New-AzVirtualNetworkSubnetConfig -Name $VSubNetName2 -AddressPrefix $VSubNet2Prefix
$GWSubNet1 = New-AzVirtualNetworkSubnetConfig -Name $GWSubName1 -AddressPrefix $GWSubPrefix1
$vnetInfra = New-AzVirtualNetwork -Name $VNetName2 -ResourceGroupName $RG1 -Location $Location1 -AddressPrefix $VNet2Prefix -Subnet $VSubNet2,$GWSubNet1 -DnsServer $DNS1

# Peer Infrastructure and VDI networks
Add-AzVirtualNetworkPeering -Name HSoA-to-Infra -VirtualNetwork $vnetHSoA -RemoteVirtualNetworkId $vnetInfra.Id -AllowForwardedTraffic -AllowGatewayTransit
Add-AzVirtualNetworkPeering -Name Infra-to-HSoA -VirtualNetwork $vnetInfra -RemoteVirtualNetworkId $vnetHSoA.Id -AllowForwardedTraffic -AllowGatewayTransit

# Create VPN gateway

$gwpip1    = New-AzPublicIpAddress -Name $GWIPName1 -ResourceGroupName $RG1 -Location $Location1 -AllocationMethod Dynamic
$vnet1     = Get-AzVirtualNetwork -Name $VNetName2 -ResourceGroupName $RG1
$subnet1   = Get-AzVirtualNetworkSubnetConfig -Name "$GWSubName1" -VirtualNetwork $vnet1
$gwipconf1 = New-AzVirtualNetworkGatewayIpConfig -Name $GWIPconfName1 -Subnet $subnet1 -PublicIpAddress $gwpip1

New-AzVirtualNetworkGateway -Name $GWName1 -ResourceGroupName $RG1 -Location $Location1 -IpConfigurations $gwipconf1 -GatewayType Vpn -VpnType RouteBased -GatewaySku VpnGw1

# Create local network gateway - definition of your on-prem network logic

New-AzLocalNetworkGateway -Name $LNGName -ResourceGroupName $RG1 -Location $Location1 -GatewayIpAddress $LNGIP -AddressPrefix $LNGPrefix1,$LNGPrefix2

# Create the S2S VPN connection

$vnet1gw = Get-AzVirtualNetworkGateway -Name $GWName1  -ResourceGroupName $RG1
$lng5gw  = Get-AzLocalNetworkGateway -Name $LNGName -ResourceGroupName $RG1

New-AzVirtualNetworkGatewayConnection -Name $ConnectionName -ResourceGroupName $RG1 -VirtualNetworkGateway1 $vnet1gw -LocalNetworkGateway2 $lng5gw -Location $Location1 -ConnectionType IPsec -SharedKey 'VMware1!VMware1!' -EnableBGP $False

# Create App Registration in Azure AD

$appName = "HZSAP"
$startDate = Get-Date
$endDate = (Get-Date).AddYears(3)
$HorizonServiceApp = New-AzureADApplication -DisplayName $appName
$KeyValue = New-AzureADApplicationPasswordCredential -ObjectId $HorizonServiceApp.ObjectId -CustomKeyIdentifier "HSoA-Key-1" -StartDate $startDate -EndDate $endDate

#Create text file with details for Horizon Cloud setup

$KeyValueDescription = "App Client Sectret Key Value:" | Out-File -FilePath .\AzureIDs-For-HZCloud.txt -Append
$KeyValue.Value | Out-File -FilePath .\AzureIDs-For-HZCloud.txt -Append
$AppIDDescription = "Application (Client) ID:" | Out-File -FilePath .\AzureIDs-For-HZCloud.txt -Append
$HorizonServiceApp.AppId | Out-File -FilePath .\AzureIDs-For-HZCloud.txt -Append
$AppIDDescription = "Object ID:" | Out-File -FilePath .\AzureIDs-For-HZCloud.txt -Append
$HorizonServiceApp.ObjectId | Out-File -FilePath .\AzureIDs-For-HZCloud.txt -Append
$AzTenantValueDescription = "TenantID:" | Out-File -FilePath .\AzureIDs-For-HZCloud.txt -Append
Get-AzTenant| Out-File -FilePath .\AzureIDs-For-HZCloud.txt -Append

#add permissions for service principal of the application

Start-Sleep -Seconds 5
$azsubscription = Select-AzSubscription -SubscriptionName $Sub1
$subid = $azsubscription.Subscription.Id
New-AzADServicePrincipal -ApplicationId $HorizonServiceApp.AppId
$ServicePrincipalId = Get-AzureADServicePrincipal -All $true | Where-Object {$_.DisplayName -eq $appName}
Start-Sleep -Seconds 5
New-AzRoleAssignment -ObjectId $ServicePrincipalId.ObjectId -RoleDefinitionName Contributor -Scope "/subscriptions/$subid"

#Register necessary Resource  Providers
Register-AzureRmResourceProvider -ProviderNamespace "Microsoft.Compute"
Register-AzureRmResourceProvider -ProviderNamespace "Microsoft.insights"
Register-AzureRmResourceProvider -ProviderNamespace "Microsoft.Network"
Register-AzureRmResourceProvider -ProviderNamespace "Microsoft.Storage"
Register-AzureRmResourceProvider -ProviderNamespace "Microsoft.KeyVault"
Register-AzureRmResourceProvider -ProviderNamespace "Microsoft.Authorization"
Register-AzureRmResourceProvider -ProviderNamespace "Microsoft.Resources"
Register-AzureRmResourceProvider -ProviderNamespace "Microsoft.ResourceHealth"
Register-AzureRmResourceProvider -ProviderNamespace "Microsoft.DBforPostgreSQL"
Register-AzureRmResourceProvider -ProviderNamespace "Microsoft.sql"
